AVID ProTools MTRX-옵션카드 (Speaker) Speaker Processing Card
3,964,000원
ProTools MTRX-Speaker Processing Card
128개의 EQ채널과 포괄적인 이퀄라이저 및 베이스 관리를 제공하는 1,024개의 필터로 공간의 스피커 시스템을 조정합니다.
아무때나 010 2950 2254

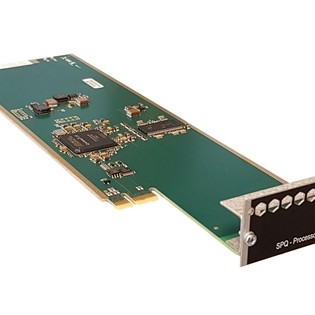

Avid Pro Tools | MTRX SPQ Speaker Processor Card
Extremely flexible SPQ Speaker Processor option card enables precision calibration of your mixing environment, so you can tune your room to monitor in any speaker configuration, from stereo to immersive audio formats such as Dolby Atmos.
Avid Pro Tools MTRX SPQ Speaker Processor Card is a hardware option card that brings comprehensive EQ and bus management to the already very powerful MTRX. It was designed to strike the right balance between flexibility and ease of use and gives you powerful monitor control for all configurations including stereo, 2.1, 5.1, 7.1, immersive formats like Dolby ATMOS and more.
The SPQ speaker processor card allows you to add up to 1,024 EQ filters across 128 channels at 48 kHz. You can use a maximum of 16 filters on each channel until the 1,024 limit has been reached. But if you work at higher resolutions, the system supports 96 kHz (64 channels), 192 kHz (32 channels) and 384 kHz (16 channels). Filters for all sample rates are available natively on the SPQ card when sample rates are changed.
The SPQ Card can be configured to various different filter characteristics and channel layouts via the DADman control software and is all integrated and easily managed by the Pro|Mon monitor control section in DADman. The SPQ Card supports all the system sample rates and will reconfigure automatically and fast when sample rates are changed, with equal filters and delay independent of the sample rate. Delay can be set individually per channel as well as generally for a whole set of speakers to also accommodate lip-sync applications.
Normally one card is installed, but if more channels are needed more cards can be installed. The SPQ card does not have any I/O connectivity as it is a pure processing card. The SPQ card provides filters for channel-based speaker EQ and well as Bass Management.
The SPQ setting is stored in the Pro|Mon monitor profile in DADman, and speaker settings can be recalled separately from stored monitor profiles for fast change of parameters.
SPQ Speaker Processing Card Features:
- Channels -- 128 channels at 48 kHz
- Filters -- 1,024 IIR (infinite impulse response) filters
- Room tuning -- Supports up to 16 filters per channel
- Bass management -- Supports multiple subwoofers
- Supported sample rates -- 44.1 kHz–384 kHz
- Latency -- Adjustable, up to 800 ms per channel
- Audio formats -- Supports multi-channel audio setups, including stereo, 5.1, 7.1, and 64-channel Dolby Atmos, with speaker match between various immersive audio formats
- Software integration -- Works with DADman and Pro | Mon for speaker management and control, including saving and recalling configurations
About Pro Tools MTRX
Pro Tools | MTRX is a fully modular I/O and Monitor-Control box, enabling you to customize it with up to eight analog and/or digital audio I/O option cards to create a 64-channel interface for Pro Tools | HD. You can install a maximum of six AD and/or DA cards to support up to 48 analog channels. Or design an all-digital box—or any combination between. Just start with the Pro Tools | MTRX base unit and go from there.
Take ultimate control of your studio with Avid Pro Tools | MTRX. MTRX features a wide variety of option cards to perfectly suit your need. Call or Chat an RSPE Representative to configure your Pro Tools | MTRX.
